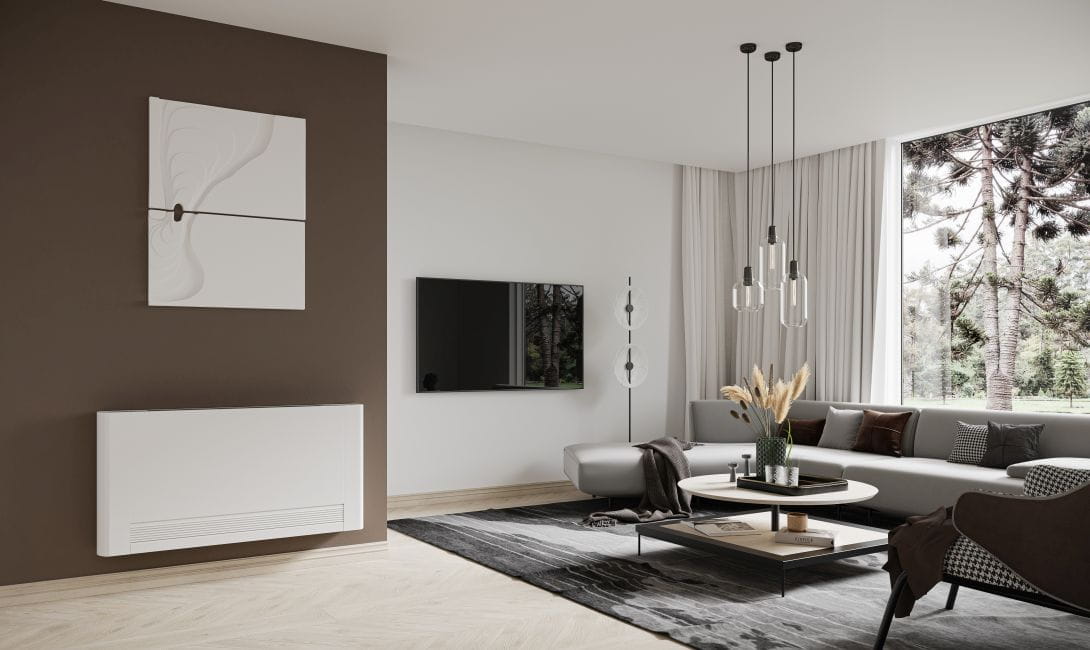

Tips and tricks for installing the iVector S2 fan convector radiator
1. iVector S2 fan convector radiator & piping
The iVector S2 fan convector is operated with a delta t between 5 and 7 K. This creates a higher flow volume and means that the suitability of the pipe network must be checked in case of a renovation project.
For the hydronic connection we recommend using flexible pipes. If there are existing pipes coming up from the floor, you might consider using the pipe covers that are available as a separate accessory.
2. iVector S2 fan convector connections
It can be useful to note that all electrical connections can be found on the right side of the fan convector and all hydronic connections on the left side as standard.
The 230 V electrical connection must be made by a qualified electrician in accordance with local and national wiring regulations. The iVector S2 fan convector radiator must also be earthed during installation.
3. iVector S2 fan convector radiator for low flow temperatures
The iVector S2 fan convector radiator can be operated with flow temperatures ranging from 30 to maximum 80°C. However, it works most advantageously in combination with a heat pump or condensing boiler at flow temperatures between 30 and 45°C. When the temperature drops below 40°C, the fan coil radiator is significantly more efficient than standard panel radiators or even fan-assisted radiators. This is due to the combination of low water content and its specially designed axial fan, which allows the fan convector radiator to respond quickly to fluctuations in room temperature.
In heating mode we recommend a minimum supply temperature of 30°C. In cooling mode the fan coil radiator allows for a temperature range between 5°C and about 20°C, depending on the user’s needs.
4. iVector S2 fan convector in heating and/or cooling mode
The iVector S2 fan convector has been designed to provide both pleasant warmth in the middle of the winter, as well as a cool breeze in the middle of the summer. Of course users are free to choose whether to use the cooling function. In case both heating and active cooling are used, it’s important to also install a condensate drain. In this case, do not forget to fit the drain with a siphon as an odour trap. If condensate-free or dry cooling is implemented, external dew point monitoring is recommended. The cooling capacity is lower in this case.
5. iVector S2 fan convector radiator accessories
The iVector S2 fan convector radiator is supplied including the control unit, flow and return valve. Accessories such as a remote control panel, stand consoles, covers, etc. are optionally available.
Other installation accessories such as power cables and control cables for remote control need to be provided by the installer. For the iVector S2 Auto, for example, we recommend a 230V power cord with 3 cores for Live, Neutral and Earth connection and a control cable to the fan convector radiator. This allows for the implementation of all options (heating contact/cooling contact/release contact). It’s also possible to loop both power and control from one iVector S2 to another iVector S2. A 0-10 V version is available for building management systems.
6. iVector S2 fan convector radiator in-wall or in-ceiling installation
The iVector S2 fan convector offers many installation options, including in-wall or in-ceiling installation. To easily build in the unit we recommend using the corresponding metal casing and casing cover, which are available as separate accessories. If the fan coil unit is placed against the wall, removing the front plate will make for an easier installation.
7. iVector S2 fan convector radiator controls
The iVector S2 is fitted with a control unit as standard. However, if the fan convector radiator is mounted on the ceiling or recessed in the wall or ceiling, a remote control unit can be installed on the wall to ensure easy control access at all times. A 4-core serial RS485 power cable with a minimum cross-section of 0.35 mm² must be used in this case.
