Actuators

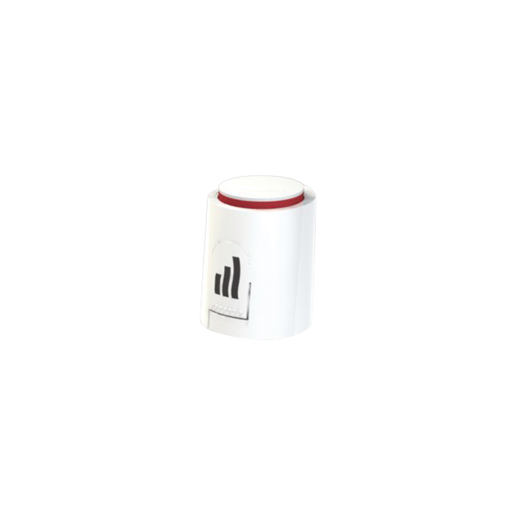

TempCo 230 V actuator for Purmo underfloor heating with single-zone receiver.

Normally closed, power 1 W, IP 54 in all mounting positions, with function indicator and snap lock, incl. adapter ring (adapter rings for other makes available on request), First Open function for easy initial installation. Extended 5 year warranty

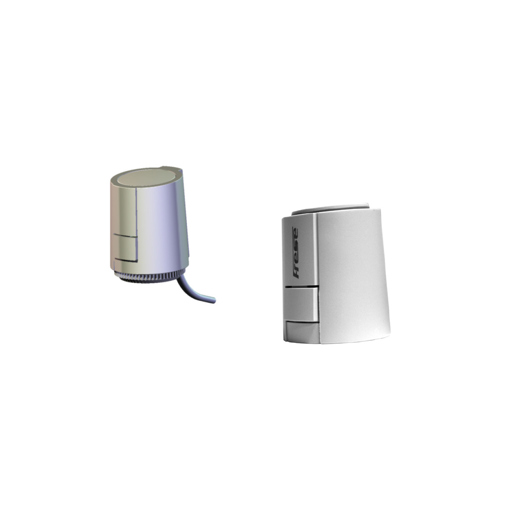

Thermal actuator VAF is used for control valve TOV in heating and cooling systems. The actuator has M30x1.5 thread, The actuator can be mounted without tools. Suitable for places where there are cramped spaces. The actuators have an on / off function. Normally Closed. The actuators can be used with PWM control as well. The actuators are intended for TOV valves with M30 connection and stroke of 2.5 or 5.5 mm.

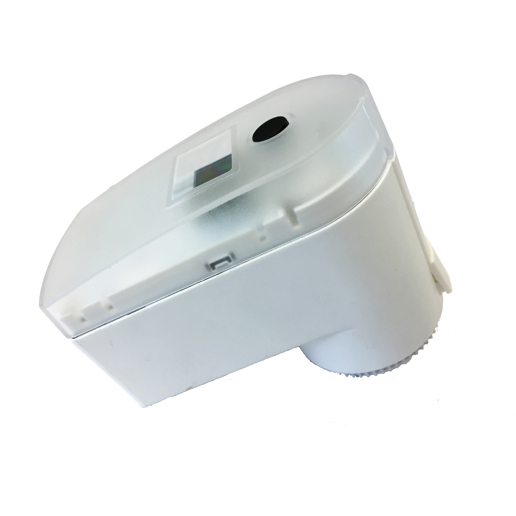

The MOVE motorized actuator is designed for regulating MMA's valves with M28x1.5 or M30x1.5 connection and to be used togethter with thermostats enabelling modulating output (0-10V) to ensure precise and accurate control.

Description The MOVE actuator with high actuating power is suitable for valves with M28x1.5 and M30x1.5 connection. The actuator is a motorized actuator that adjusts the valve steplessly. The actuator adjusts itself to the correct stroke for each valve, between 2-8.5 mm.
Room controller with continuous output (0-10V) in individual room control systems.

TempCo 24 V actuator for Purmo underfloor heating with single-zone receiver.

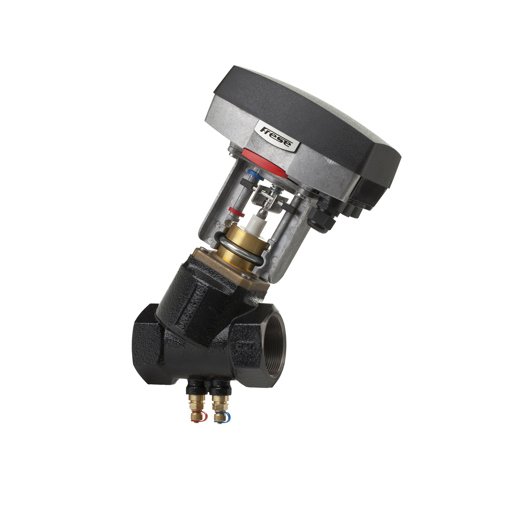

Motoric actuator for TOV control valve. 0-10V control signal

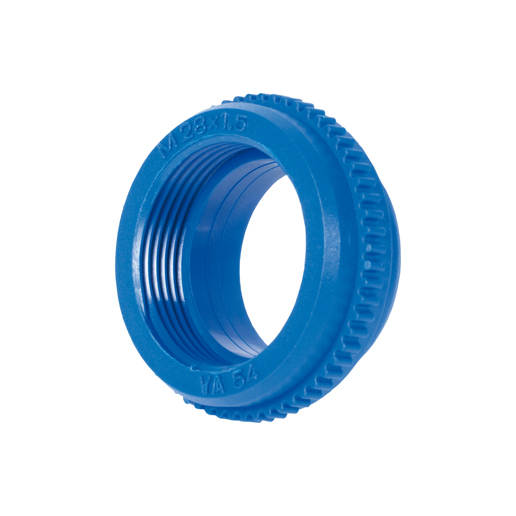

TempCo actuator adapter ring for connection to Purmo MiniMix underfloor heating shunt.
