ThermoCon

As wall surface area for installation of radiators decreases and large glass sections that demand heat to prevent convection increase, ThermoCon is the optimal solution. Small, efficient and in an elegant design, it handles major heating requirement with the lowest energy consumption. ThermoCon is a convector, built around a copper pipe with profiled aluminium fins. The water borne heat circulating in the copper pipe is transferred to the aluminium fins in whose channels a warm, self-drawn air flow is created. No moving parts - simply so easy and very effective! ThermoCon is also available without integrated valve arrangement (TCN-U).

Properties
Max operating temperature °C 110
Standard EN 442-1
Pressure rating PN10
Material Aluminium / Copper
Standard colour White RAL 9016
Types 1; 2
Heights [mm] 100; 200; 300
Widths [mm] 510; 610; 810; 1010; 1310; 1610; 1910; 2220; 2520

Bottom, left side connection ETIM 11.
Thanks to the V4 connctor left side connection is possible.

ETIM TP 2-11 Horizontal connection

Bottom, right side connection ETIM 88.
Thanks to the V4 connctor right side connection is possible.

ETIM TP-7-88 Horizontal connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty
Files
DocumentCategory
SE_TCN_HEATOUTPUTS_2014.xlsx Heat Output
Pre-setting FV 4 Installation manual
Data Sheet Technical data sheet
Installation

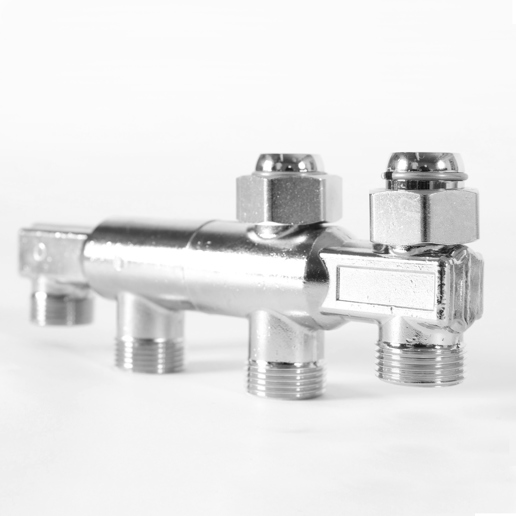

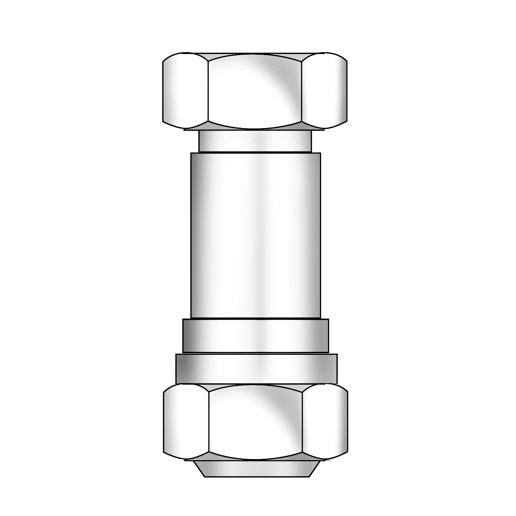

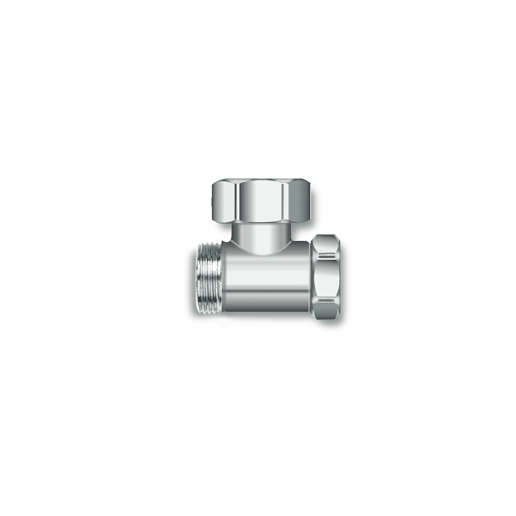

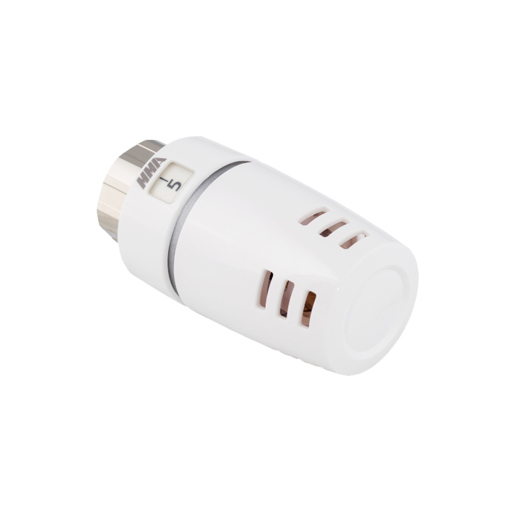

Accessories
