Ulow-E

The Ulow-E is a highly efficient fan-assisted radiator that pairs well with heat pumps for optimal indoor comfort. Ulow-E is suitable for residential flats and houses that operate with low temperature systems. Integrated fans that automatically activate whilst operating increases the natural convection through the radiator and can boost overall heat output by up to 60%.
The Ulow-E is a classic double panel, double convector, compact panel radiator with sleek profiles, finished in white RAL 9016 to match all interiors. An integrated manifold set and pre-adjustable valve insert is equipped as standard. This makes Ulow-E ideal for renovation projects, where you are replacing old or inefficient radiators, the product includes both the compact and valve required to operate the product. Ulow-E is compact in size, offering space-saving installation with no compromise on heating performance. An easily accessible, factory-fitted cable switch gives the user flexibility to switch the power off, this could be when at work, at night or during warmer months of the year where heating is not required.

Properties
Max operating temperature °C 60
Standard EN 16430
Connection dimension 2 x G 3/4 + 4 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 11,88
Types 22
Heights [mm] 500; 600; 900
Widths [mm] 400; 600; 800; 1000; 1200; 1400; 1600; 1800; 2000

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

ETIM 37 Horizontal connection

Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

Hor-connection-ETIM-62-1219.svg

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

ETIM 88 LR Bottom connection. Bottom connection via integrated valve requires the use of a valve insert. Unused connections are plugged.

ETIM 88 LR Horizontal connection

ETIM 11 Bottom connection, in-right-out-left. Bottom connection via integrated leash requires the use of a valve insert. Unused connections are plugged.

ETIM 11 RL Horizontal connection

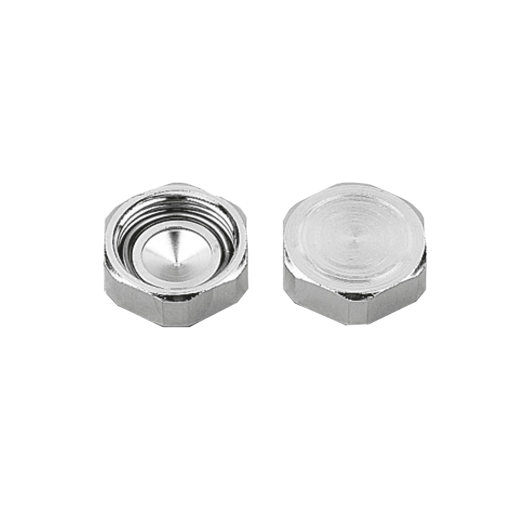

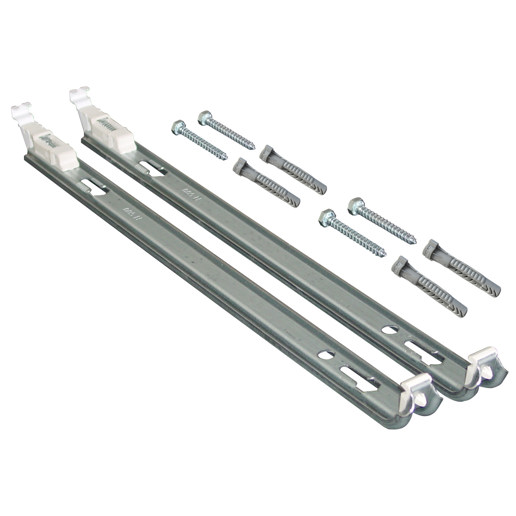

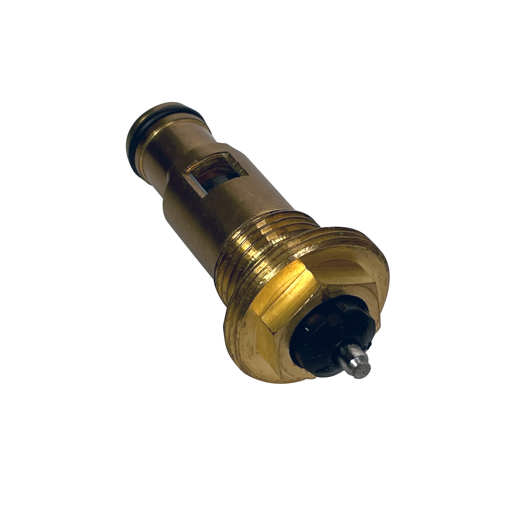

Thermostatic valve incl. site cap, blanking and vent plugs are pre-assembled at the factory. The wall brackets are included (Monclac wall brackets: 2 pcs. up to 1600mm; 3 pcs. for 1800 and 2000mm). Furthermore, a complete pre-installed fan group with temperature-controlled control unit and an integrated low-voltage transformer with ready-to-connect mains cable are included.

Purmo Group radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes. Underfloor heating products and piping systems elements are warranted for a period of 10 years. *2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)

10_2_year_warranty_components_icon_RGB.svg

CE certificate
