Unisenza controls support

At Purmo we are just as dedicated to creating innovative indoor climate comfort solutions as we are to offering the best possible customer service. That’s why we’ve created this knowledge base to provide you with easy access to all support materials related to the Unisenza control range.
Unisenza represents a complete, unified control solution for underfloor heating and cooling. As a modular system this control range ensures a unique sense of comfort with high-quality products that are as easy to install as they are to use. To make the process of selecting, installing and using the best-suited products even easier, we’ve created and compiled various support materials, including videos, manuals, app links, etc.

Unisenza Digital Thermostat

Electronic PI controller (2-point or PWM) with silent Triac output and LCD display, temperature range 5-30°C, click-mounting on flush-mounted connection unit, suitable for heating & cooling and ECO operation, selectable programme options (Comfort, ECO, Automatic, Manual), freely definable setback temperature; connection option for an external floor sensor, ultra-flat design with only 17mm depth. Extended 5 year warranty

Unisenza Dial Thermostat

Electronic P-controller with noiseless Triac output, temperature range 5-30°C, for surface mounting or on a flush-mounted connection unit, suitable for heating & cooling or ECO operation (adjustable via jumper), fixed setback temperature 2K, two-colour LED to indicate the operating mode, flat design with 30 mm installation depth. Extended 5 year warranty

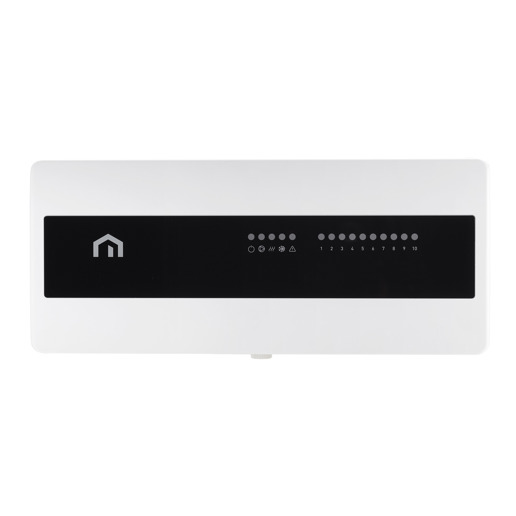

Unisenza Wiring Center

For safe and easy wiring of Unizenza room thermostats and actuators. Suitable for heating and cooling operation. For max. 10 room thermostats and 2 actuators per room. Integrated pump switch-off module (live contact in 230V version) with pump protection function. Boiler/heat pump contact (relay). Connection for optional dew point and excess temperature sensor. LED switching status indicators for pump and boiler contacts, heating or cooling mode operation, dew point exceeded, thermostat request, etc.. Click mounting on DIN rail or screw mounting. Euro plug pre-wired (230V version) or connection via external transformer (24V version). Extended 5 year warranty

Unisenza WiFi Thermostat

Electronic PI controller (2-point or PWM) with noiseless Triac output and LCD display, temperature range 5-30 °C, click mounting on flush-mounted connection unit, clock thermostat with weekly programme also as central control for time control of Dial and Digital thermostats. Simple coupling with the WLAN router for APP control possible (no gateway required). Presence control possible through geo-fencing. Suitable for heating & cooling and ECO operation, selectable programme options (comfort, ECO, automatic, manual), connection option for an external floor sensor, ultra-flat design with only 17mm depth. Online software update capability (OTA). Free APP for Android and IOS. Extended 5 year warranty

Unisenza Floorsensor

NTC sensor 10 kOhm for floor temperature detection for the Unizenza Digital and WiFi thermostats. Connection cable 3m long. Extended 5 year warranty

Unisenza Dew Point Sensor

External contact dew point sensor for humidity monitoring in cooling mode. Connection to the Unizenza safety edge. Extended 5 year warranty

Unisenza Transformer

Transformer for connecting the Unizenza safety edge 24V. Voltage AC 230V/AC 24V (50/60 Hz), power max. 60W, protection class IP 65. Extended 5 year warranty

Unisenza Actuator 2-Wire

Normally closed, power 1 W, IP 54 in all mounting positions, with function indicator and snap lock, incl. adapter ring (adapter rings for other makes available on request), First Open function for easy initial installation. Extended 5 year warranty
Tools and Services

Download the Unisenza app

Compatible with the WiFi programmable thermostat, a simple pairing to your WiFi router enables you to remote control the product with an intuitive app on your smartphone. This allows you to control the ideal room temperatures, time programs or other settings wherever and whenever you want.

Google Play Apple Store
Unisenza app
Tools and Services

Product finder

Add article code or product name
Tools and Services

Unisenza Plus Controls range Support

The Unisenza control range is all about facilitating the control of underfloor heating and cooling for all parties involved. Unisenza Plus is our connected control range. This is a more extensive range which allows for easy control of our various heat transfer systems. Ranging from specifier to installer to end user, everyone should be able to understand and work with these products as easily as possible. If you have any questions about the Unisenza or Unisenza Plus product range or are looking for more documentation, please don’t hesitate to browse through the relevant controls knowledge base to find the information you need.

Unisenza Plus support
Unisenza Plus app
Contact

Customer services

If you have any questions regarding our products, services or orders, please contact our customer service team. We are happy to help you and provide you with any information you need.
Customer service
